GB/T 13850 Standards 50Hz Electric Current Transducers BD-3P Series

Name: GBT 13850 Standards 50Hz Electric Current Transducers BD3P Series
Brand: Acrel
Price: 53 USD

China GB/T 13850 Standards 50Hz Electric Current Transducers BD-3P Series wholesale

Brand Name : Acrel

Model Number : BD-3P

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : USD 53-248/pcs

Supply Ability : 10000/month

Delivery Time : 3 days

Packaging Details : Individually packed in big carton

Direct L-L : Up to 480V AC

Direct L-N : Up to 276V AC

Direct Current : Up to 5A AC

Analog Output : DC 5-10V,0-10V,0-20mA.4-20mA

Accuracy Class : 0.5%

Auxiliary Power : 85-265V,AC/DC,DC24V,DC48V

Temperature Coefficient : -10 to +55℃

Standards : GB/T 13850

Contact Now

BD-3P series Electricity Transducer can measure Voltage, Current, Power, Power factor, Frequency; 1.2 times of rated value overload; DC 0-5V/0-10V/0-20mA/4-20mA all can be choosed as analog output.

Technical Features

Technical parameter		ADL100-EY
Voltage	Reference voltage	3*220/380V
	Reference frequency	50Hz
	Consumption	<4VA(Each phase)
Current	Input Current	1(6)A,10(80)A
	Starting Current	Connect directly: 0.004 Ib, connect via CT: 0.002In
	Consumption	<4VA
Measurement performance	Accuracy of measuring	0.5Class
Clock accuracy		Error ≤0.5s/d
Active pulse	Pulse width	80ms±20ms
Active pulse	Pulse constant	6400imp/kWh,400imp/kWh
Communication	Interface	RS485(A+,B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU

Dimension

GB/T 13850 Standards 50Hz Electric Current Transducers BD-3P Series

Quotation

Product Tags:

GB/T 13850 Electric Current Transducers

50Hz Electric Current Transducers

50Hz electric current sensor

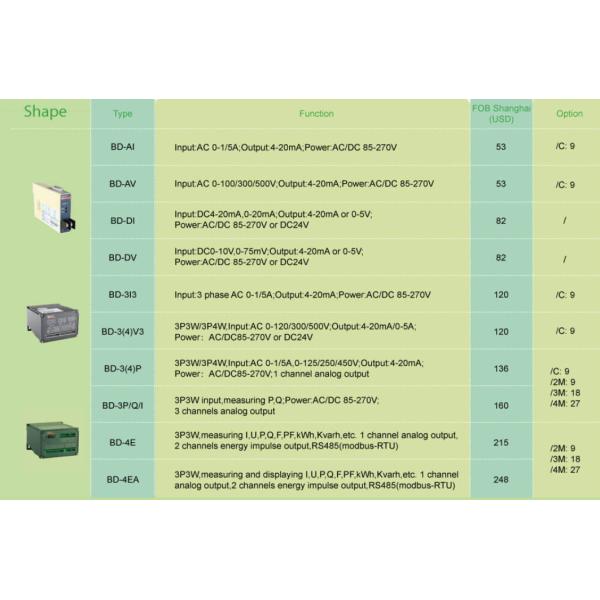

GB/T 13850 Standards 50Hz Electric Current Transducers BD-3P Series Images
