Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output

Name: Class 05 Input AC 05a 01a Electric Current Transducers 420mA Output
Brand: Acrel
Price: 37.10 USD

China Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output wholesale

Place of Origin : Jiangsu, China

Brand Name : Acrel

Model Number : BD-AI

MOQ : 1 Piece

Price : $37.10 / Piece

Usage : Current

Phase : Single

Coil Structure : TOROIDAL

Coil Number : AUTOTRANSFORMER

Current input : AC0-5A or 0-1A

Output : 0-5V/0-10V/4-20mA/0-20mA

Frequency : 50HZ-60HZ

Certificate : CE

Color : white

Accuracy : 0.5

Auxiliary power supply : AC/DC85-270V, DC24V

Selling Units : Single item

Single package size : 17X15X13 cm

Single gross weight : 0.800 kg

Package Type : paper carton

Contact Now

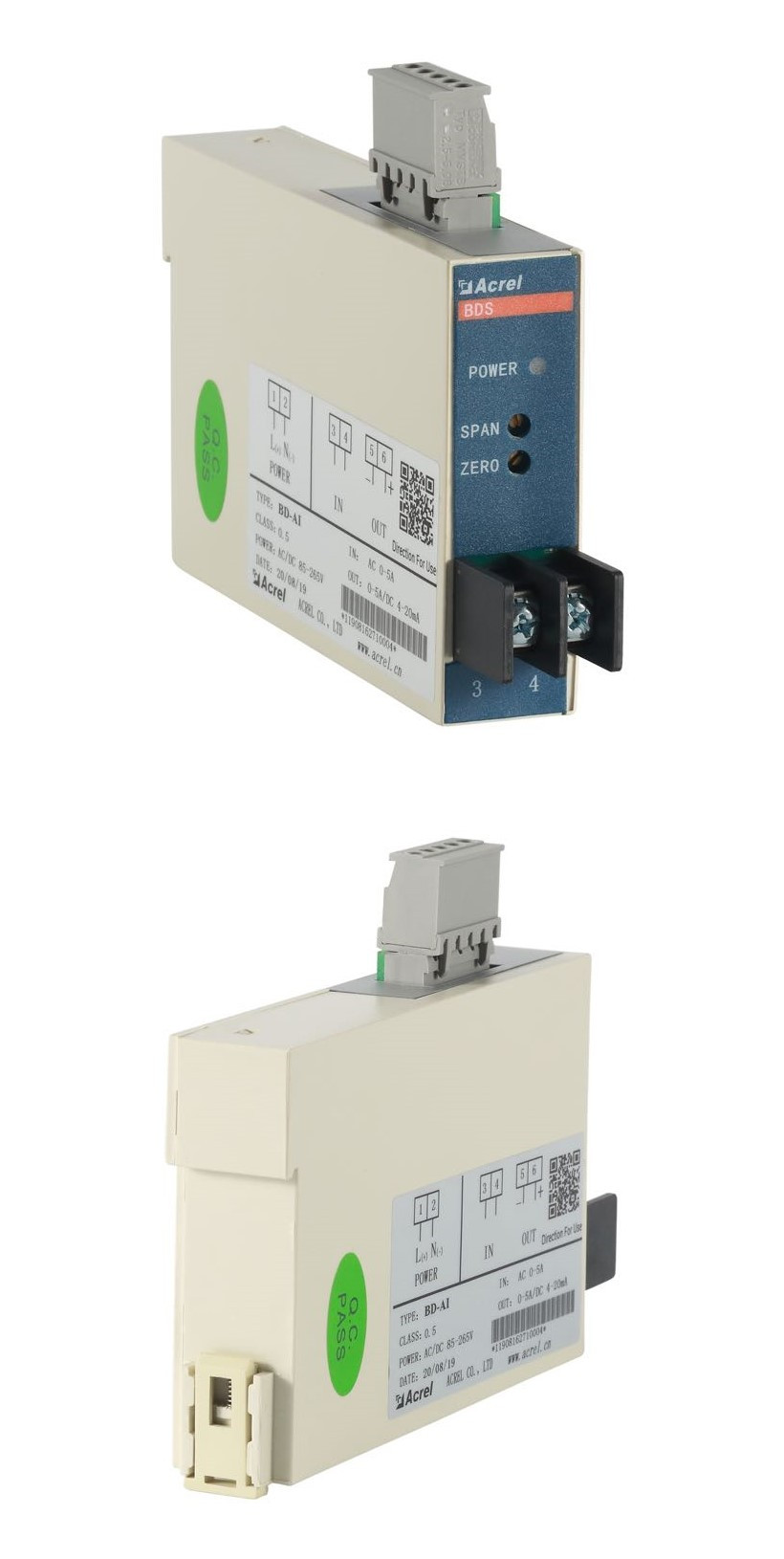

AC Current Transducer

Product Description

Characteristic

General
BD Series transducer is a kind of device which can isolate and transmit electric parameters such as current, voltage

frequency,power,power factor or temperature,resistance and so on non-electrical parameters,into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.
Standards
IEC/EN61869-1,IEC/EN61869-2

Class 0.5 Input AC 0-5a 0-1a Electric Current Transducers 4-20mA Output

Model: BD-AI

Input: AC0-5A or 0-1A

Output: DC4-20mA,0-20mA,0-5V,0-10V

Accuracy: Class 0.5

Power supply: AC85-265V / DC24V
Frequency: 45-65Hz

Response time: <400ms

Insulation resistance: ≥100MΩ
Continuous overload: 120%In
Environment:

Operating temperature:-10℃ ~ +55℃
Storage temperature:-25℃ ~ +70℃
Humidity: ≤93%RH
Altitude: ≤2500m
Installation method: TS35mm rail or screw

Quotation

Type	Function	FOB Shanghai (USD)
BD-AI	AC current transducer Input: AC0-1/5A Output: 4-20mA or 0-5V	31.8
BD-AV	AC voltage transducer Input: AC0-100/300/500V Output: 4-20mA or 0-5V	31.8
BD-DI	DC current transducer Input DC4-20mA,0-20mA;Output:4-20mA or 0-5V	57.4
BD-DI	DC current transducer Input DC4-20mA,0-20mA;Output:4-20mA or 0-5V	57.4
BD-DV	DC voltage transducer Input DC0-10V,0-75mV;Output:4-20mA or 0-5V	57.4
BD-3I3	Three phase AC current transducer Input: AC0-1/5A Output: 4-20mA or 0-5V	84
BD-3(4)V3	Three phase AC voltage transducer Input: AC0-100/300/500V Output: 4-20mA or 0-5V	84
BD-3(4)P	Three phase AC power transducer Input: AC0-1/5A, AC0-120/250/450V Output: 4-20mA or 0-5V	95.2
BD-4E	Measuring I,U,P,Q,F,PF,kWh,Kvarh,etc. Output: one 4-20mA or 0-5V channel analog output	150.5

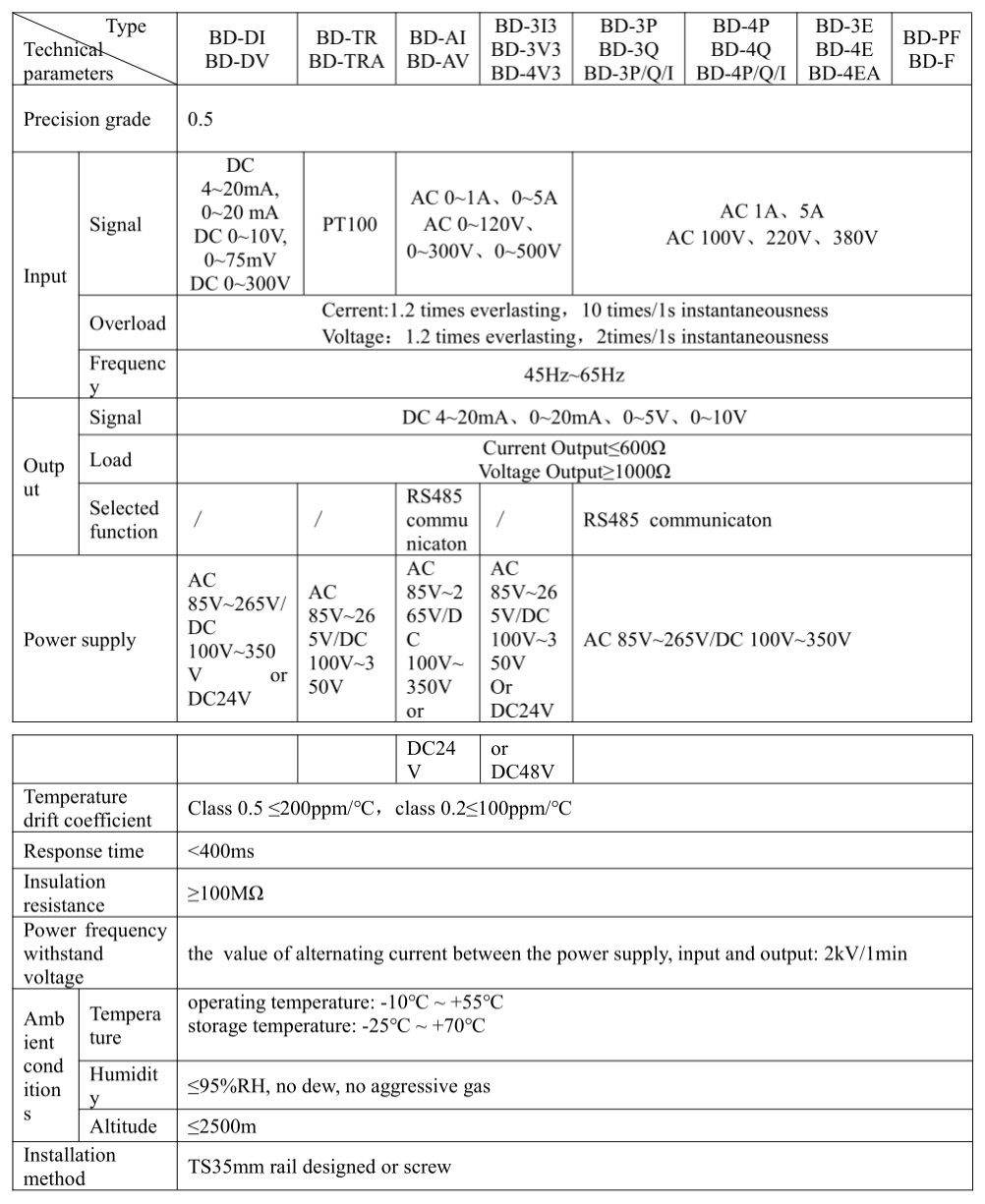

Specification

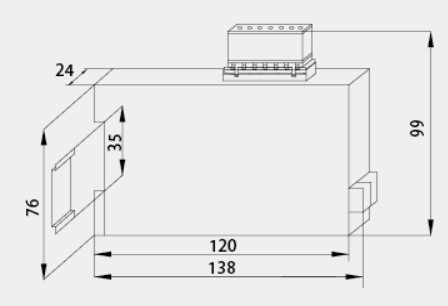

Dimension

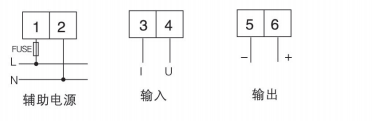

Wiring

Packing & Delivery

Company Profie
